Oxygen flow meter
Product Detail



Oxygen flow meter

Wuxi oubai electromagnetic flowmeter is manufactured with the latest technology of contemporary electromagnetic flow and has the following characteristics:

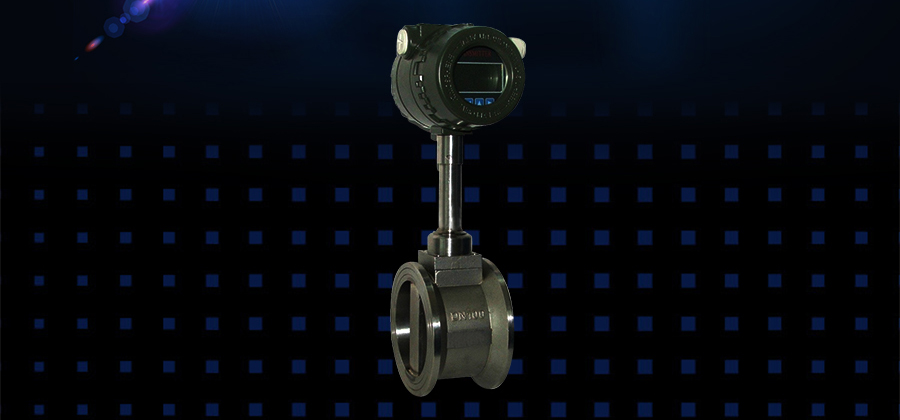

Oxygen flowmeter or vortex flowmeter features: no mechanical moving parts inside the sensor of steam flowmeter, high reliability, small pressure loss. Wide range of sensors for temperature, pressure, and 40 ~ 350 ℃, 0 ~ 16 mpa. The range is wide and the precision is high. The measurement results are not affected by fluid density, pressure, temperature, viscosity and other parameters. 12V~42V wide power supply voltage input range to adapt to a variety of complex power supply environment. This design has its own internal zener safety barrier.





Code name

size

Flow range ㎡/h

HR-LWJ25

DN25

1~10(liquid)

25~60(gas)

For steam flow rate, please refer to the manual. For DN300 +, it is recommended to use a plug-in vortex flowmeter

HR-LWJ32

DN32

1.5~18(liquid)

15~150(gas)

HR-LWJ40

DN40

2.2~27(liquid)

22.6~150(gas)

HR-LWJ50

DN50

4~55(liquid)

35~350(gas)

HR-LWJ80

DN80

9~135(liquid)

90~900(gas)

HR-LWJ 100

DN100

14~200(liquid)

140~1400(gas)

HR-LWJ 150

DN150

32~480(liquid)

300~3000(gas)

HR-LWJ 200

DN200

56~800(liquid)

550~5500(gas)


Code name

Function 1

N

No temperature and pressure compensation

Y

There is temperature and pressure compensation


Code name

Output type

F1

4-20ma output (two-wire)

F2

4-20ma output (three-wire system)

F3

RS485 communication interface


Code name

Measured medium

J1

liquid

J2

gas

J3

steam


Code name

The connection method

L1

Flange mounting type

L2

Flanged connection type


Code name

Function 2

E1

1.0

E2

1.5

T1

The normal temperature

T2

The high temperature

T3

steam

P1

1.6MPa

P2

2.5MPa

P3

4.0MPa

D1

Internal 3.6v power supply

D2

DC24V power supply

B1

Stainless steel

B2

Carbon steel




HQRS thermal mass flowmeter directly measure the mass flow rate and standard volume flow, do not need to the size of the pipeline pressure compensation applicable scope is big, there are suitable for big diameter of the plug and is suitable for small diameter pipeline is no moving parts all parts in contact with the medium and material of 316 l stainless steel rugged enclosure protection, suitable for outdoor application using wireless bluetooth interface for harsh field change sensor Settings screen flow, consumption, medium temperature, and the diagnosis results, two road analog output (4-20 mA) and pulse output all the way

Optional: field BUS interface: HART, MODBUS, m-bus

ATEX certification: II 2 G Ex d IIC T4

The bidirectional measurement
