Sewage online turbidimeter
Product Detail

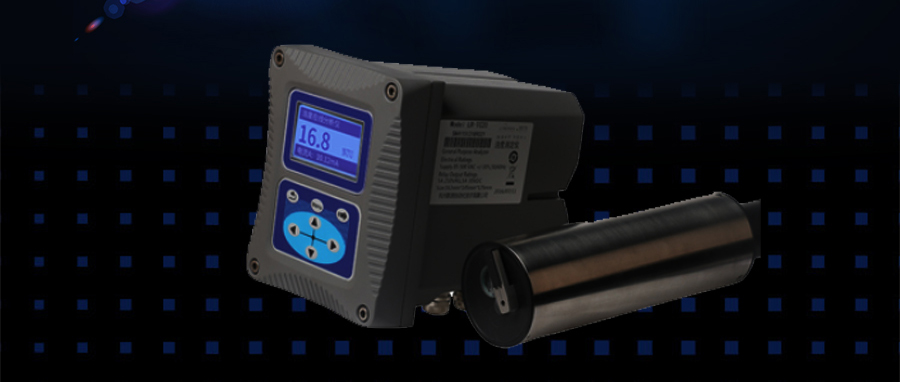

Sewage turbidimeter

Online turbidity analyzer with a built-in microprocessor, advanced configuration, powerful, is a very sophisticated turbidity meter, based on the 880 nm infrared light through the optical lens and penetrate the sample liquid, according to standard ISO7027 90 ° direction of scattered light measuring principle, the turbidity analyzer can be used in the different parts of the filtering device measuring the turbidity raw water or pure water, such as drinking water, all kinds of production and industrial water, and no need to use water.


product nameSewage turbidimeter
Measuring range0.01~20000mg/L,0.01~45000mg/L,0.01~120000mg/L
Accuracy of measurementLess than 5% of the measured taxi (depending on sludge homogeneity)
Pressure range≤0.4Mpa
Main sensor materialsBody: SUS316L+PVC(ordinary version); Titanium alloy (Marine version); O ring: fluorine rubber; Cable PVC
Power supply

Ac power supply: 100~240VAC(50~60HZ)5W;

Dc power supply: 9~36VDC 5W

Protection gradeSensor: IP68/NEMA6P; Transmitter: IP65/NEMA4X


Tungsten light source, meet the requirements of USEPA 180.1;

Support zero and seven point calibration; Support the calibration restore function to restore the factory calibration data;

Automatic range switching;

Average measurement function is supported to compensate the fluctuation of reading caused by random drift of suspended objects in samples through average calculation;

To support data access and delete, data storage capacity of 1000 groups;

With USB and rs-232 communication interface;
