Electromagnetic flowmeter
Product Detail

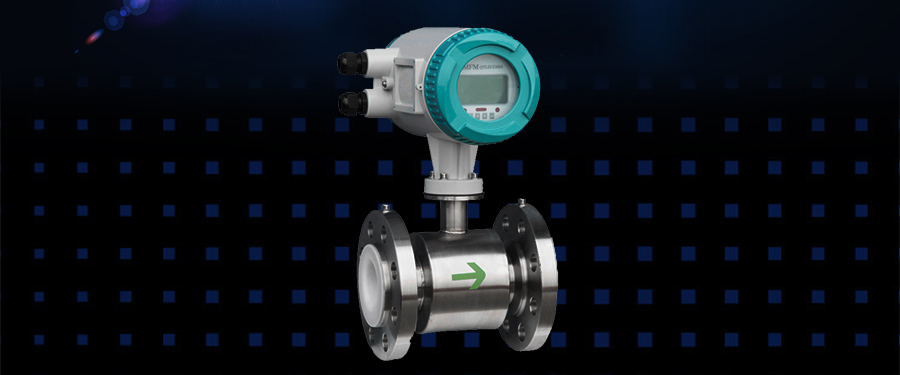

Electromagnetic flowmeter

Wuxi oubai electromagnetic flowmeter is manufactured with the latest technology of contemporary electromagnetic flow and has the following characteristics:

Flanged electromagnetic flowmeter conforms to the standard JB/ t9248-1999 "electromagnetic flowmeter", is a measurement of conductive medium volume flow of the induction instrument, in the field monitoring and display at the same time, can output the standard current signal, for the record, regulation, control use, to achieve automatic control of detection, and realize the long-distance transmission of the signal. Can be widely used in tap water, chemical, coal, environmental protection, textile, metallurgy, paper and other industries in the conductive liquid flow measurement. Has obtained the national explosion-proof electrical products quality inspection center issued by the explosion-proof certificate, explosion-proof mark for Exd11CT6, applicable to all kinds of explosive environment of liquid measurement. The instruments are installed in one size and in two sizes.





typesize(mm)

Flow range (m3/h)

CAL(mm)CAL(mm)Flow range(m3/h)
LDE15DN150.32-6.36DT--LDE/LCD450DN450286.13-5722.65
LDE20DN200.57-11.30DT--LDE/LCD500DN500353.25-7065.00
LDE25DN250.88-17.66DT--LDE/LCD600DN600508.68-10173.60
DT--LDE32DN321.45-28.94--LDE/LCD700DN700692.37-13847.40
DT--LDE40DN402.26-45.22DT--LDE/LCD800DN800904.32-18086.40
DT--LDE50DN503.53-70.65DT--LDE/LCD900DN9001144.53-22890.60
DT--LDE65DN655.97-119.40DT--LDE/LCD1000DN10001413.00-28260.00
DT--LDE80DN809.04-180.86DT--LDE/LCD1200DN12002034.72-40694.40
DT--LDE100DN10014.13-282.60DT--LDE/LCD1400DN14002769.48-55389.60
DT--LDE125DN12522.08-441.56DT--LDE/LCD1600DN16003617.28-72345.60
DT--LDE150DN15031.79-635.85DT--LDE/LCD1800DN18004578.12-91562.40
DT--LDE/LCD200DN20056.52-1130.40DT--LDE/LCD2000DN20005652.00-113040.00
DT--LDE/LCD250DN25088.31-1766.25DT--LDE/LCD2200DN22006838.92-136778.40
DT--LDE/LCD300DN300127.17-2543.40DT--LDE/LCD2400DN24008138.88-162777.60
DT--LDE/LCD350DN350173.09-3461.85DT--LDE/LCD2600DN26009551.88-191037.60
DT--LDE/LCD400DN400226.08-4521.60
Code nameElectrode materials
K1316L
K2 HB
K3HC
K4Ti
K5Ta
K6Platinum alloy
K7Stainless steel coated with tungsten carbide
codeLining material
C1Ptfe F4
C2Polyperfluoroethylene propylene F46
C3Polyfluoroethylene FS
C4Polystyrene rubber
C5Polyurethane rubber
codefunction
E10.3level
E20.5level
E31level
F14-20Madc,load≤750Ω
F20-3khz,5v active, variable pulse width, high effective frequency output
F3RS485 interface
T1ambient temperature
T2High temperature type
T3Ultra high temperature type
P10.6MPa
P21.0MPa
P31.6MPa
P44.0MPa
D1220VAC±10%
D224VDC±10%
J1Monomorphic structure
J2Fractional structure
J3Explosion-proof type structure



The measurement accuracy is not affected by fluid density, viscosity, temperature, pressure and conductivity.

The measuring pipe has no obstruction, no moving parts and no pressure loss.

The solenoid flow sensor can be well grounded with grounding electrode.

Electromagnetic flow sensor adopts advanced processing technology, so that the instrument has a good ability to resist negative pressure.

Full digital processing, strong anti-interference ability, reliable measurement, high accuracy.

High definition backlight LCD display, full Chinese menu operation, easy to use, easy to operate, under strong light goods night can read clearly.

With two-way flow, two-way total cumulative function, current, frequency with two-way output function.

The measuring precision of the instrument system is high and the range of use is wide. It can not only be used for the measurement of sewage, cement slurry and ore slurry, but also for the measurement of the flow rate of strong acid and strong alkali liquid.

Converter output powerful: not only with 4-20ma, pulse output, but also with RS485 or RS232, HART and other digital communication and GPRS wireless data remote transmission.
