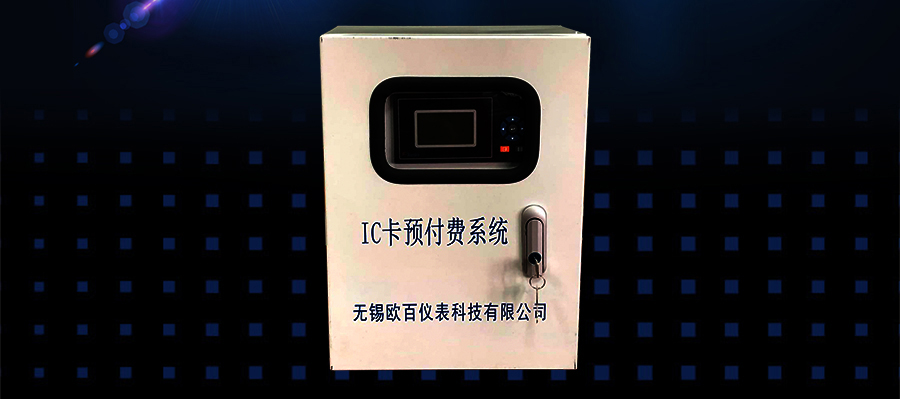

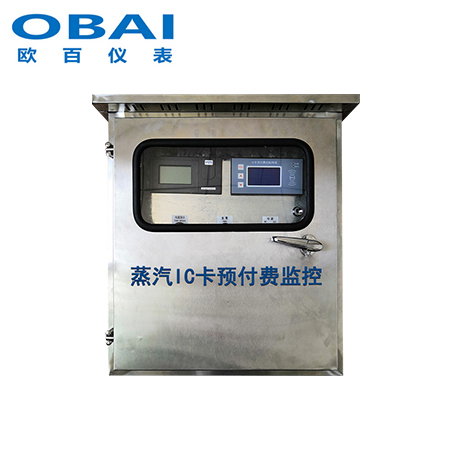

IC card prepaid steam flowmeter
Product Detail



IC card prepaid flowmeter

Developed by wuxi oubai instrument technology co., LTD., IC card steam prepaid remote monitoring system is a combination of software and hardware automation network management system. It is installed on the steam pipe equipment a IC card prepayment control box, for users of steam flow monitoring, electric valve open and close control, such as IC card prepayment control box DTU GPRS/CDMA wireless transmission module, easy for the user's instantaneous flow and cumulative flow, temperature, pressure, balance, valve opening, the door is open and close status information such as uploaded to the computer steam resource management center, realtime supervision and control of gas units. For the users who have not paid the steam resource fee, the staff of the resource management center can remotely control the opening and closing of the electric valve of the steam unit through the computer system, so as to realize the automation and integration of steam resource management and monitoring.




Hardware capabilities

GPRS/CDMA IC card steam prepayment control box basic functions and features:

Accurate collection of on-site instrument signals: flow meter, pressure transmitter, thermal resistance, valve, etc.;

IC card steam quantity, pay and then consumption;

Control the electric pilot valve according to the amount of steam purchased by the user, and limit the amount of steam owed by the user;

Real-time transmission of data to the monitoring center via wireless network;

2, 220V or 380V power supply and backup battery automatic power supply, and provide power alarm reminder;

3. Non-operators can open the metering control cabinet to remind the anti-intrusion alarm;

3, display function: LCD display at work, the cumulative amount, residual information, and provide residual SMS query reminder;

2. Auto purchase: IC card recharge purchase and remote bank recharge payment dual functions;

Software functions

IC card steam capacity selling function;

5, with the steam unit residual query, display, residual insufficient SMS reminder and alarm function;

The steam source, user data electronic map real-time monitoring display (flow, pilot valve status and other information);

You can control the supply or stop according to the user's steam fee payment, and provide the credit limit setting function;

Active call function:

In other words, data of monitoring points can be extracted actively from the server of the dispatching center at any time.

Report function:

Automatic generation of daily, monthly, annual report, but also at any time for statistical reports, printing. Automatic printing can be set;

Data storage backup function:

The system database can be stored locally, and the storage time is determined according to requirements and computer configuration.

Automatic fault alarm function:

The monitoring point automatically reports the fault information to the monitoring center and automatically prints the alarm information. Automatic detection of the fault: flow meter communication fault, 220v ac power failure, IC card fault, etc.

System expansion and upgrading functions:

The system has an open data interface to facilitate the increase and expansion of monitoring points.

System security permission setting function:

The permission setting provides perfect security authentication, illegal users cannot enter the system, and legal users can conduct corresponding operations according to the permission.

Advanced system: all Chinese LCD display, intuitive, simple, convenient, each operation with intelligent tips, can be set in the controller, easy to operate;

* easy to use: non-contact IC card, simple operation, easy to use, avoid contact IC card electrocution defects;

Higher confidentiality: recharge equipment has a unique number, data dynamic encryption, to achieve a card a table, a card a secret, one on one binding, with higher confidentiality.

Record preservation and query: energy supply units can centralized card, recharge, consumption and can accurately record each recharge time and recharge amount, real-time query and report printing, to ensure transparent and safe operation;

External network instrument inspection personnel assessment function. Record and upload the inspection time of inspection personnel at any time, real-time query, realize one person one card, one machine multiple CARDS;

Control the excess range with steam, valve opening with feedback detection function, when the flow over the limit, the system can set the valve opening, automatic control of the size of the valve, to ensure that the flow is not over the limit, accurate measurement; And real-time upload the actual valve opening; At the same time has the warm pipe function, prevents the steam to impact the pipeline.

* the history record is permanently saved, the controller can permanently save three kinds of history records: recharge record, inspection record, open box record, power off record.

According to the special requirements of users tailored with special control functions of various controllers and the corresponding control device.



Advanced system: all Chinese LCD display, intuitive, simple, convenient, each operation with intelligent tips, can be set in the controller, easy to operate;

* easy to use: non-contact IC card, simple operation, easy to use, avoid contact IC card electrocution defects;

Higher confidentiality: recharge equipment has a unique number, data dynamic encryption, to achieve a card a table, a card a secret, one on one binding, with higher confidentiality.

Record preservation and query: energy supply units can centralized card, recharge, consumption and can accurately record each recharge time and recharge amount, real-time query and report printing, to ensure transparent and safe operation;

External network instrument inspection personnel assessment function. Record and upload the inspection time of inspection personnel at any time, real-time query, realize one person one card, one machine multiple CARDS;

Control the excess range with steam, valve opening with feedback detection function, when the flow over the limit, the system can set the valve opening, automatic control of the size of the valve, to ensure that the flow is not over the limit, accurate measurement; And real-time upload the actual valve opening; At the same time has the warm pipe function, prevents the steam to impact the pipeline.

* the history record is permanently saved, the controller can permanently save three kinds of history records: recharge record, inspection record, open box record, power off record.

According to the special requirements of users tailored with special control functions of various controllers and the corresponding control device.
